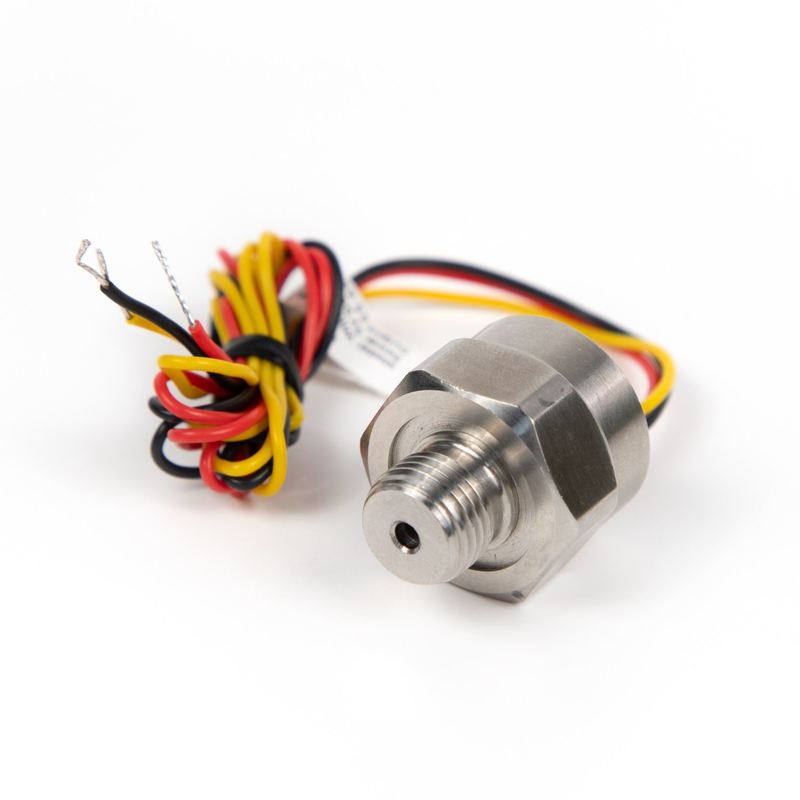

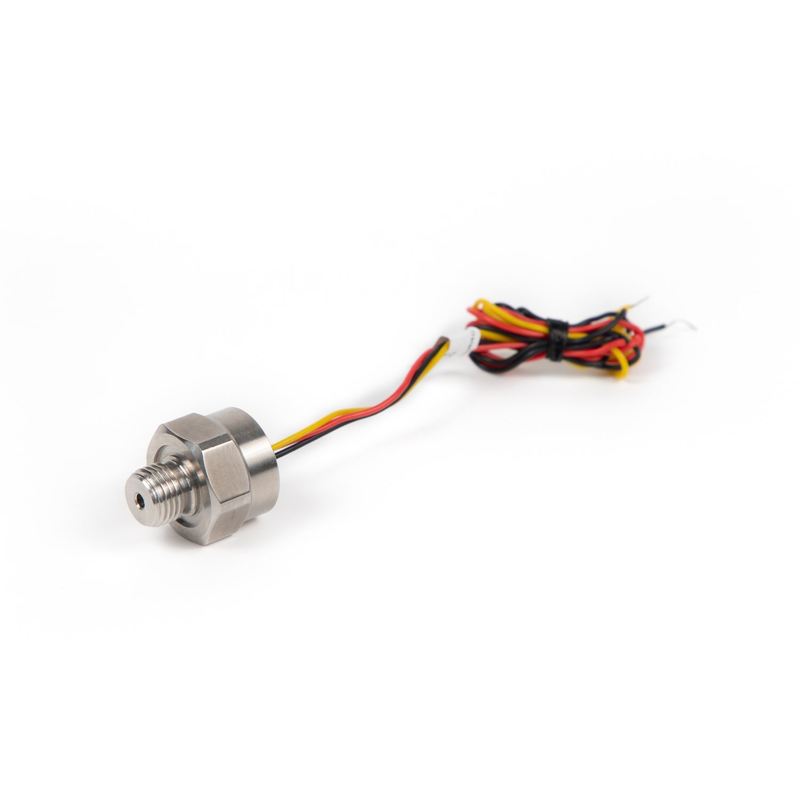

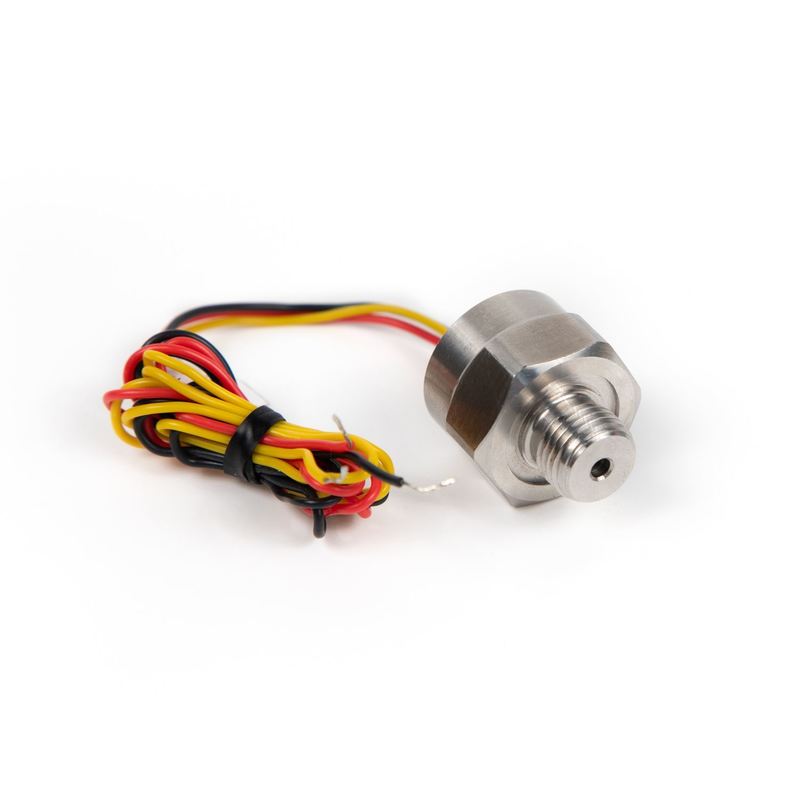

Name: WNK811 Small Size Ceramic Capacitive Pressure Sensor for Water Air Gas
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK811
Availability: InStock

Rumah > Produk > Sensor Tekanan Miniatur >

WNK811 Small Size Ceramic Capacitive Pressure Sensor for Water Air Gas

small ceramic capacitive pressure sensor

miniature pressure sensor for water air gas

capacitive pressure sensor with warranty

Tempat asal:

Cina

Nama merek:

WNK

Model Number:

WNK811

Hubungi Kami

Minta Kutipan

WNK811 Small Size Ceramic Capacitive Pressure Sensor for Water Air Gas

Rincian produk

Ketepatan:

1%FS

Measured media:

Liquid, gas and steam

Rentang tekanan:

0 ~ 150bar

Sinyal keluaran:

4~20mA

Catu daya:

24v

Suhu sekitar:

-40 ~ 110 °C

Koneksi proses:

G1/4M

Koneksi listrik:

kabel

Bahan:

Baja tahan karat

Menyoroti:

small ceramic capacitive pressure sensor

miniature pressure sensor for water air gas

capacitive pressure sensor with warranty

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 pcs

Harga

negotiable

Kemasan rincian

Pengemasan karton netral atau sesuai kebutuhan Anda.

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

T/T, Serikat Barat, MoneyGram, Paypal

Menyediakan kemampuan

5000/ potong/ bulan

Produk terkait

video

0.5-4.5v 4-20ma I2C Sensor Tekanan Keramik Untuk Pengendalian Kebakaran Cerdas

Dapatkan Harga Terbaik

video

304 Stainless Steel 4- 20mA Pemancar Tekanan 0,5-4.5V Untuk Hvac

Dapatkan Harga Terbaik

video

Sensor Tekanan Kapasitif Keramik 4-20mA Untuk Kompresor Kondisi Udara

Dapatkan Harga Terbaik

video

Sensor Tekanan Oli Biaya Rendah 4-20mA Untuk Otomatis

Dapatkan Harga Terbaik

Hubungi Kami

86-551-65369655

Hubungi Sekarang

Deskripsi Produk

Product Description

Applicable media	Liquid, Gas
Pressure Range	10bar (bar and psi unit available)
Pressure measurment	Gauge Pressure
Output	I2C
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.(Typical)
Power supply	3.3VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Power(electrical) connect	Customization Connector, Cable outlet
Mechanical Connection	G1/4
Housing Material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

WNK811 is a series of high performance mini pressure transducer by using ASIS signal conditioning chip and 316L diaphragm diffused silicon oil filled pressure sensor .It has features of anti-corrosion ,anti-wear ,shock resistance and vibration resistance.With precise temperature characteristic compensation, it can be used reliably and stably.

Application
WNK811 is solution for below applications
•Pressure measurement of gas, vapor or liquid in various areas;
•Liquid level, volume or mass measurement;
•Integrated in a variety of user-defined solutions;
•Smart water and gas management, smart fire controlling, automotive electronics controlling, air compressor, HVAC, pump, valve and
etc

Dimensions
