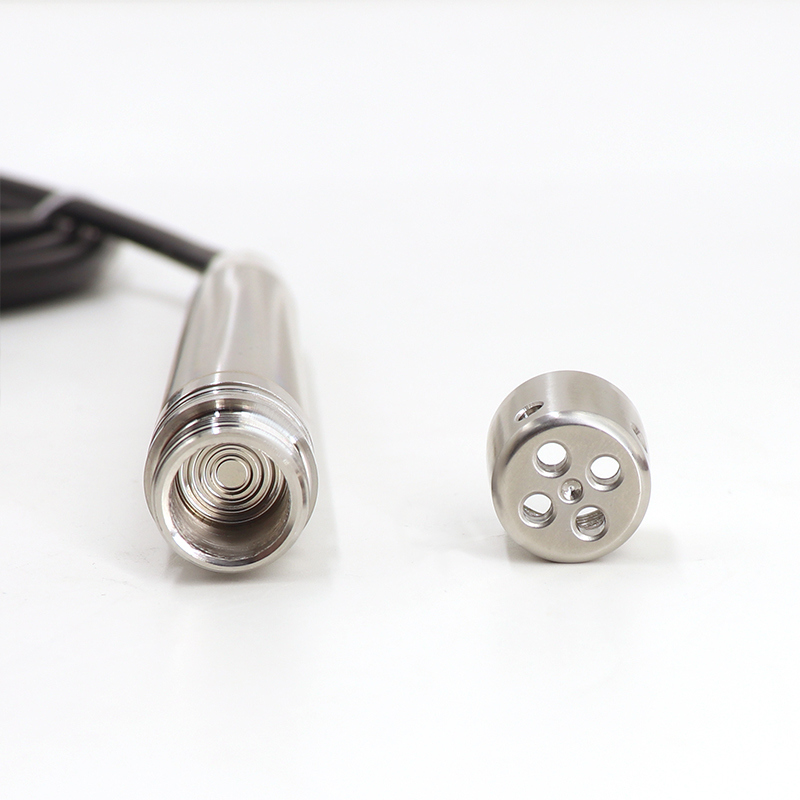

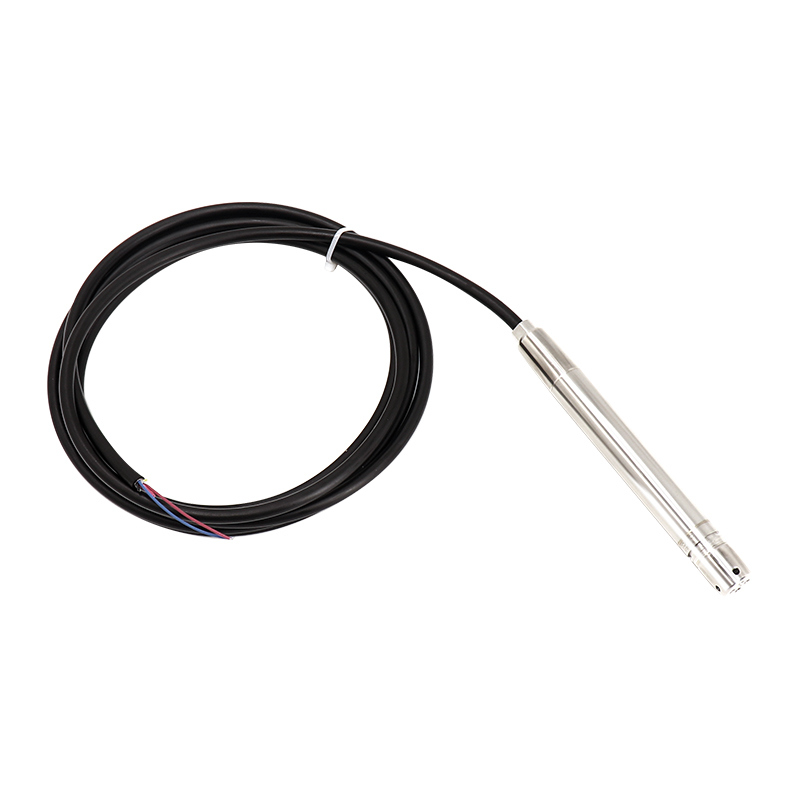

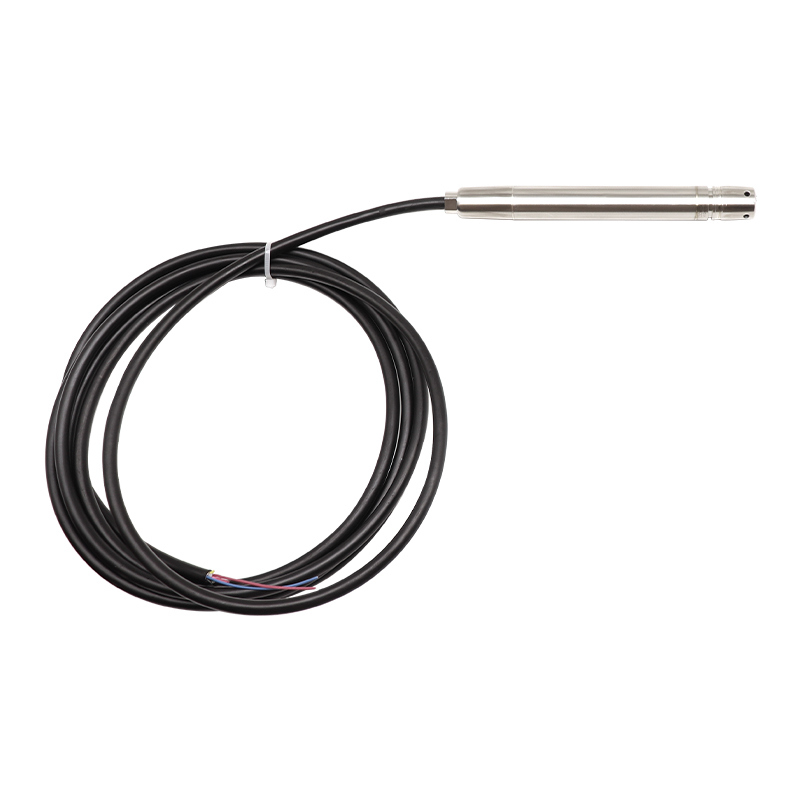

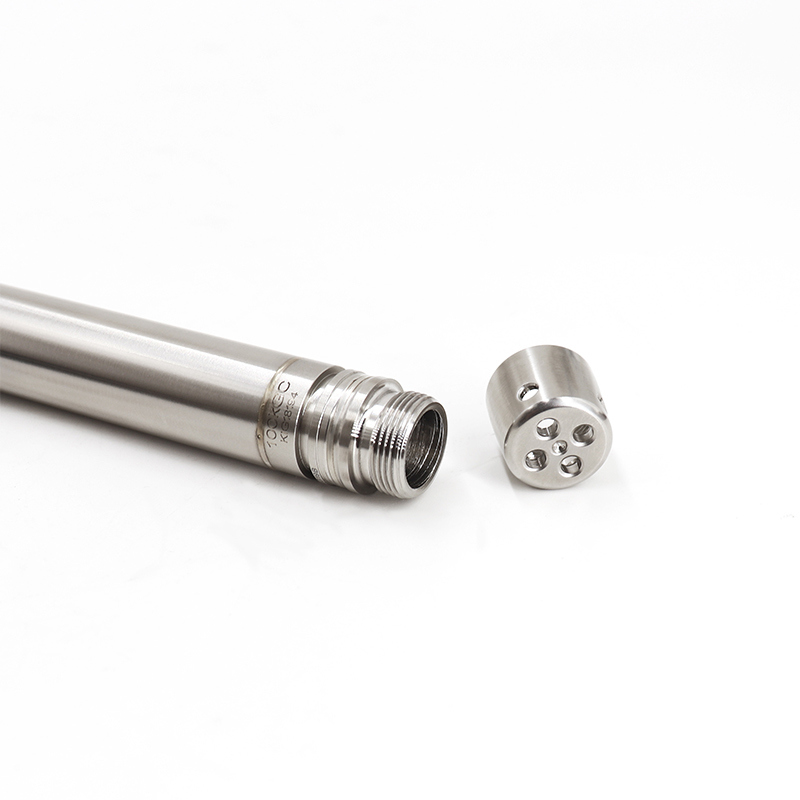

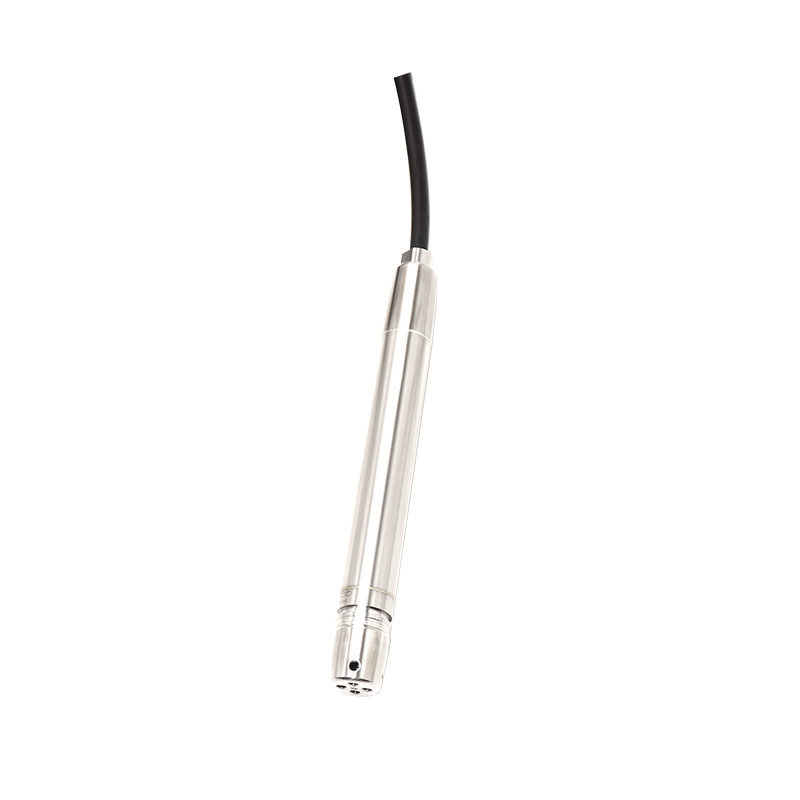

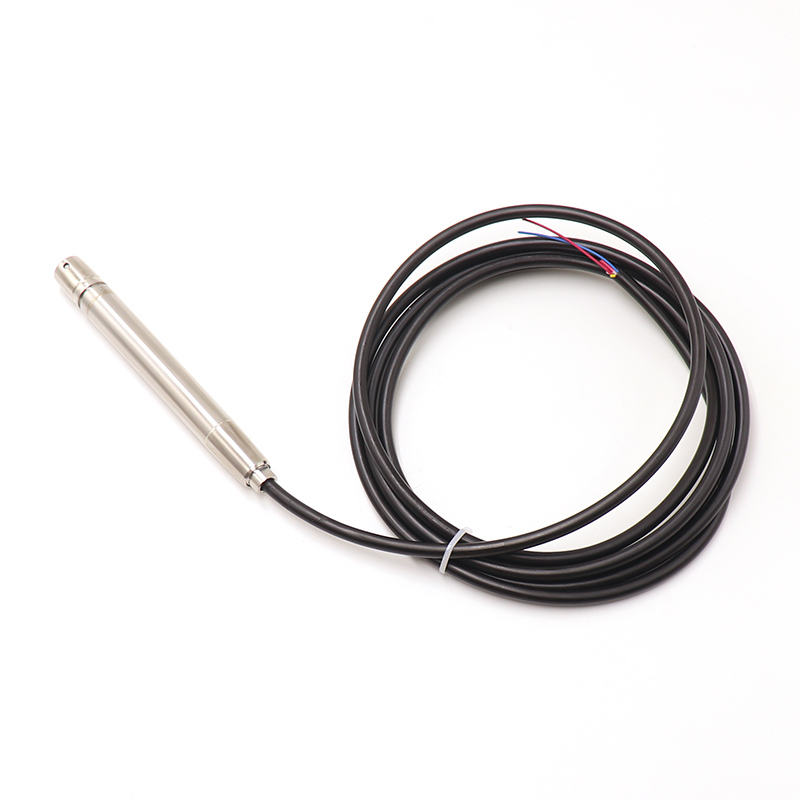

Name: WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-19
Price: 42.00 USD
Availability: InStock

Rumah > Produk > Pemancar Ketinggian Air >

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

19mm submersible water level sensor

deep well water level transmitter

small diameter borehole sensor

Tempat asal:

Anhui, Cina

Nama merek:

WNK

Nomor model:

WNK8010-19

Hubungi Kami

Minta Kutipan

Rincian produk

Jaminan:

1 tahun

Dukungan khusus:

OEM, ODM

Kisaran Tekanan::

0 ... 2 ~ 200 meter

Keluaran:

4-20MA, 0-5V, 1-5V, 0,5-4.5V, 0-10V

Ketepatan:

0,2%FS, 0,5%FS,

Catu daya:

12~36Vdc

Kelas Perlindungan:

IP68

Aplikasi:

Air hujan, air minum, air limbah, air limbah, air laut

Bahan perumahan:

304SS, 316L

Suhu Operasi::

-40~85 ℃

Jenis:

Mengukur

Layanan OEM:

OEM, ODM, kustomisasi tersedia

Pelabuhan:

Shanghai/Ningbo

Menyoroti:

19mm submersible water level sensor

deep well water level transmitter

small diameter borehole sensor

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 pcs

Harga

$35.00 - $50.00/Pieces

Kemasan rincian

Masing -masing diatur ke dalam satu karton individu, perlindungan dengan busa. Kemudian menjadi kart

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, Moneygram, Paypal

Menyediakan kemampuan

2000 potongan/potong sensor tekanan level level

Produk terkait

video

WNK ATEX Explosion Proof LCD Display Liquid Level Sensor With 4-20mA for Water Tank

Dapatkan Harga Terbaik

video

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

Dapatkan Harga Terbaik

video

WNK Submersible Hydrostatic Water Level Sensor Probe for River Tank Liquid Level Transmission Pressure Transmitter

Dapatkan Harga Terbaik

video

316L Stainless Steel 4-20mA RS485 1-10V Liquid Level Transmitter Submersible Water Diesel Fuel Tank Level Sensors

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

Product Description

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Pressure Type	Gage,Absolute
Accuracy	±0.2% FS/year
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68

WNK8010-19 deep well water level sensor has high accuracy, small volume,stability,plus resistance to abrasion,oil,acid&alkali and high intensity gas lead cable ensured that it can meet the different occasions measurement requirements.

no-polarity two wire current output.

♦ It is widely used in well, standpipe, borewell, sewage, river and lakes treatment as well as channel, large rivers, l reservoirs and coastline monitoring.

♦ This product has got intrinsic safety certification,explosion proof certification and CE certification.

Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

Size/Principle
