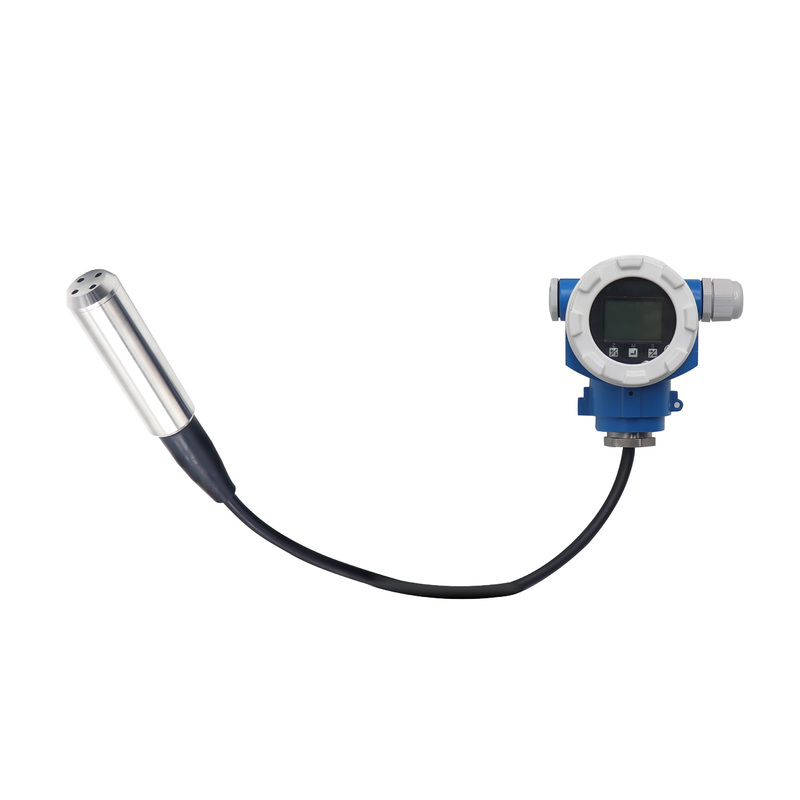

Name: ATEX Explosion Proof IP68 Submersible Water Tank Level Sensor With 4~20mA RS485 Output
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-TT
Price: 42.00 USD
Availability: InStock

Rumah > Produk > Pemancar Ketinggian Air >

ATEX Explosion Proof IP68 Submersible Water Tank Level Sensor With 4~20mA RS485 Output

ATEX explosion proof water level sensor

submersible water tank level transmitter

RS485 output water level sensor

Tempat asal:

Anhui, Cina

Nama merek:

WNK

Nomor model:

WNK8010-TT

Hubungi Kami

Minta Kutipan

Rincian produk

Jaminan:

1 tahun

Dukungan khusus:

OEM, ODM

Kisaran Tekanan::

0 ... 2 ~ 200 meter

Keluaran:

4-20MA, 0-5V, 1-5V, 0,5-4.5V, 0-10V

Ketepatan:

0,2%FS, 0,5%FS,

Catu daya:

12~36Vdc

Kelas Perlindungan:

IP68

Aplikasi:

Air hujan, air minum, air limbah, air limbah, air laut

Bahan perumahan:

304SS, 316L

Suhu Operasi::

-40~85 ℃

Jenis:

Mengukur

Layanan OEM:

OEM, ODM, kustomisasi tersedia

Pelabuhan:

Shanghai/Ningbo

Menyoroti:

ATEX explosion proof water level sensor

submersible water tank level transmitter

RS485 output water level sensor

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 pcs

Harga

$35.00 - $50.00/Pieces

Kemasan rincian

Masing -masing diatur ke dalam satu karton individu, perlindungan dengan busa. Kemudian menjadi kart

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, Moneygram, Paypal

Menyediakan kemampuan

2000 potongan/potong sensor tekanan level level

Produk terkait

video

WNK ATEX Explosion Proof LCD Display Liquid Level Sensor With 4-20mA for Water Tank

Dapatkan Harga Terbaik

video

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

Dapatkan Harga Terbaik

video

WNK Submersible Hydrostatic Water Level Sensor Probe for River Tank Liquid Level Transmission Pressure Transmitter

Dapatkan Harga Terbaik

video

316L Stainless Steel 4-20mA RS485 1-10V Liquid Level Transmitter Submersible Water Diesel Fuel Tank Level Sensors

Dapatkan Harga Terbaik

Hubungi Kami

86-551-65369655

Hubungi Sekarang

Deskripsi Produk

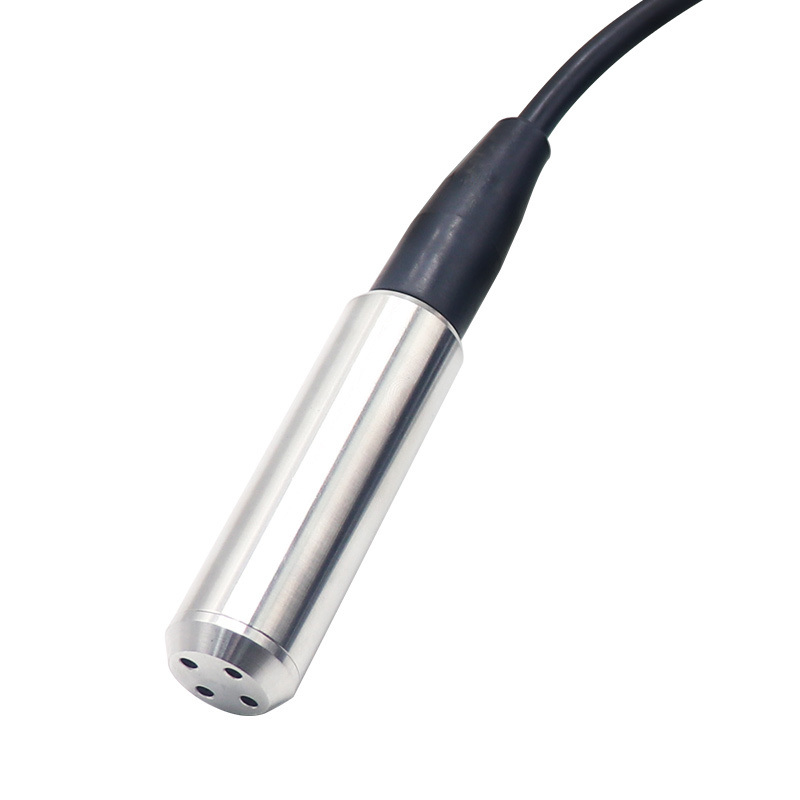

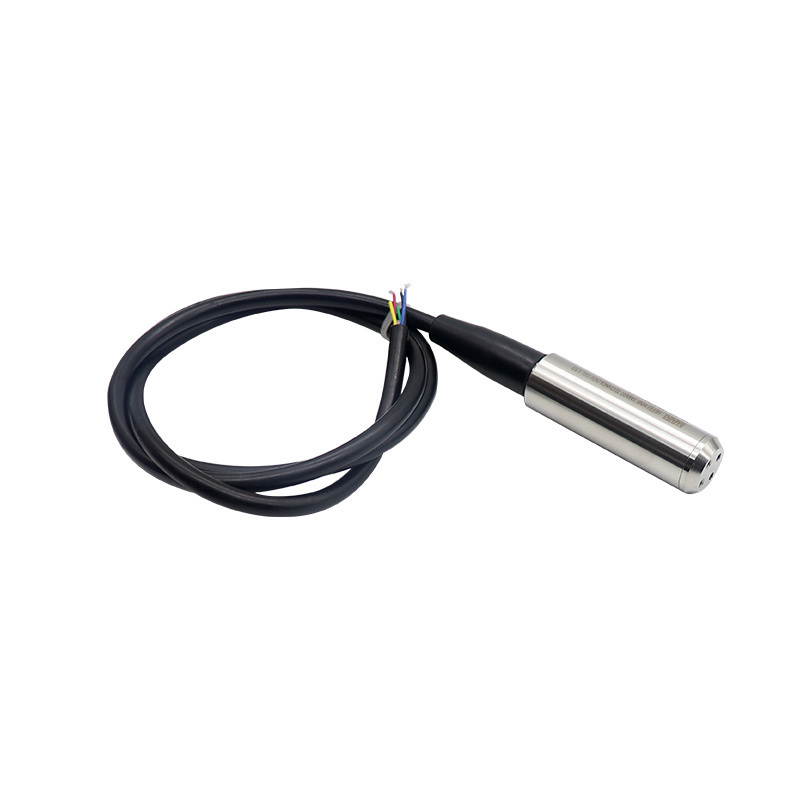

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.

Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by
customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Applicable Media	Liquid, Water
Accuracy	≤ ±0.2%FS,
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68
