Name: Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK125SP
Availability: InStock

Rumah > Produk > Sensor Tekanan IOT >

Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine

diffused silicon pressure sensor

oil-filled coffee machine sensor

IoT pressure sensor with warranty

Tempat asal:

CHIAN

Nama merek:

WNK

Nomor model:

WNK125SP

Hubungi Kami

Minta Kutipan

Rincian produk

Koneksi mekanis:

M6*1, disesuaikan

Media yang berlaku:

cair, gas

Jenis tekanan:

Tekanan pengukur, tekanan absolut

Pita kesalahan toal:

±1,0%

Rentang Tekanan:

0-5bar, 0 ~ 10bar, 0 ~ 20bar, 0 ~ 40bar

Catu daya:

5VDC

Keluaran:

0.5 ~ 4.5V, I2C

Ketepatan:

±1%FS

Menyoroti:

diffused silicon pressure sensor

oil-filled coffee machine sensor

IoT pressure sensor with warranty

Syarat Pembayaran & Pengiriman

Produk terkait

video

WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine

Dapatkan Harga Terbaik

video

Transduser Tekanan Udara Air 4-20mA 0.5-4.5V I2C -100kpa-100MP ATEX CE Sensor Pemancar Tekanan Absolut Vakum

Dapatkan Harga Terbaik

video

Sensor Tekanan WNK125P 0.5~4.5V 150PSI Sensor MAP Sensor Tekanan Otomatis 5Bar

Dapatkan Harga Terbaik

video

Sensor Tekanan Kompak WNK Hemat Biaya 0.5-4.5V untuk Udara Air Minyak

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

WNK Low Cost Pressure Sensor for Beer Coffee Machine

Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine 0

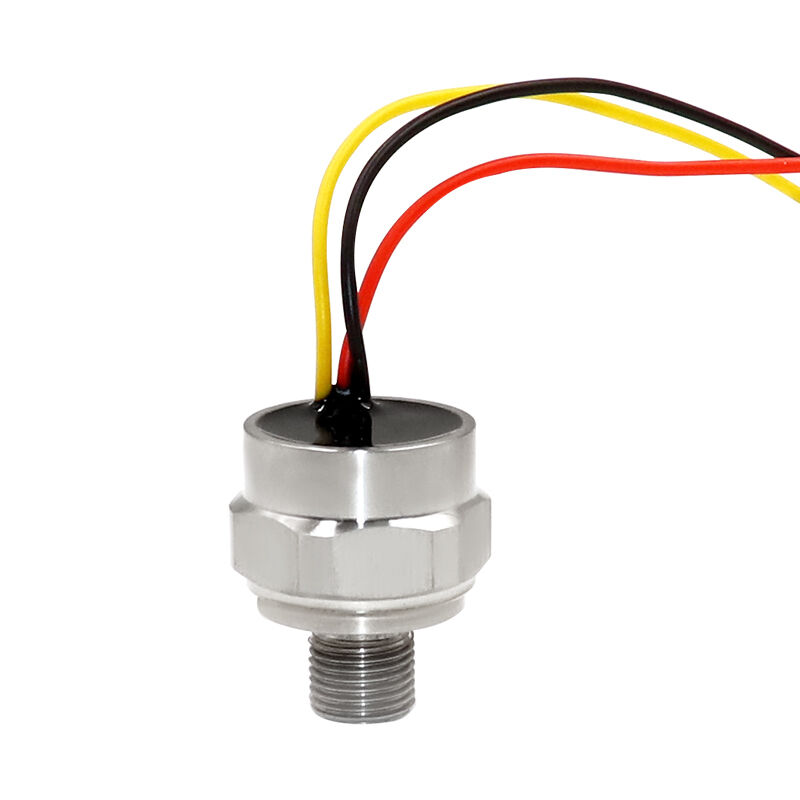

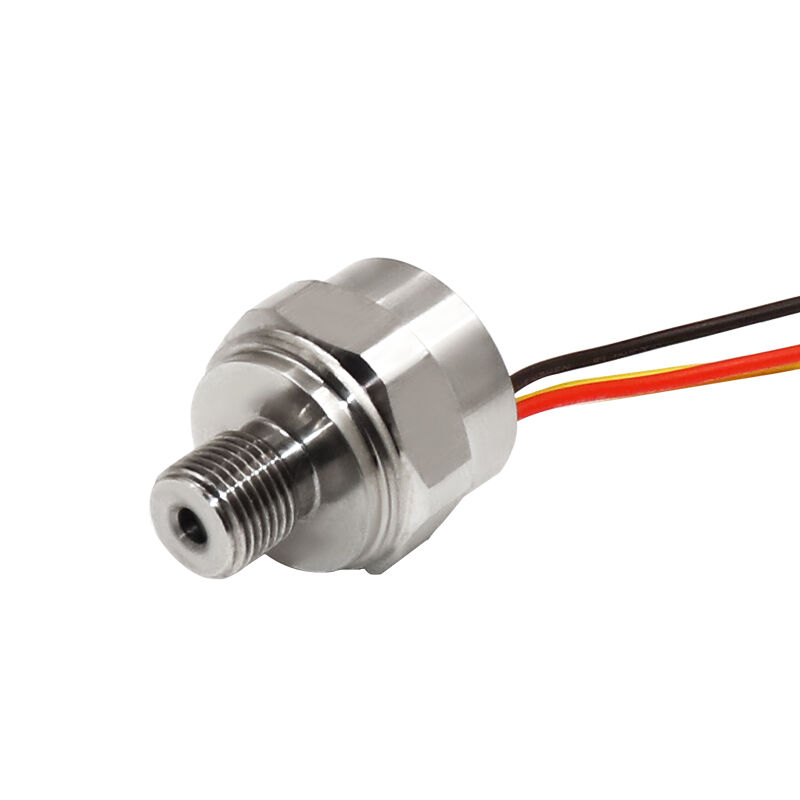

The WNK125PS is a diffused silicon oil-filled pressure sensor designed for automotive use. The element is made with a fully welded 316L diaphragm and doses not require and O-ring seals that could come into contact with the pressure medium, making it compatible with all types of liuqids. The absence of any moving parts results in a longer service life. With high temperature stability and accuracy, this pressure sensor is mainly used in Coffee Machine, Water Dispenser, Water Meter, automotive etc.

Applicable media	Liquid, Gas
Pressure Range	5bar,10bar,20bar,40bar
Pressure measurment	Gauge Pressure,Absolute pressure
Output	0.5~4.5V, I2C
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.(Typical)
Power supply	5VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Power(electrical) connect	Customization Connector, Cable outlet
Mechanical Connection	M6*1
Housing Material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP68

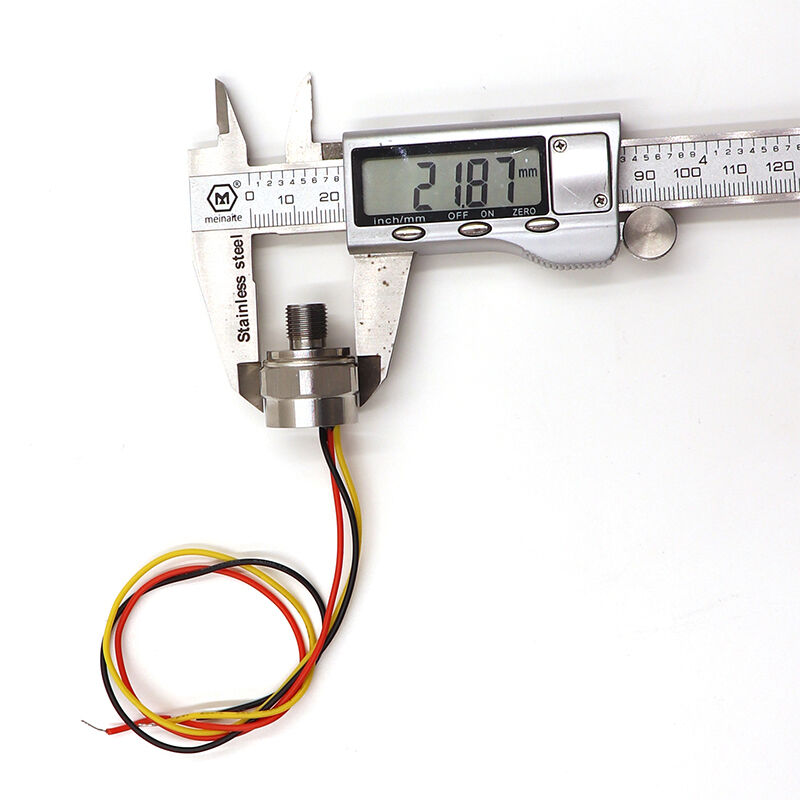

Dimensions

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea

If you have any questions, please feel free to contact me
